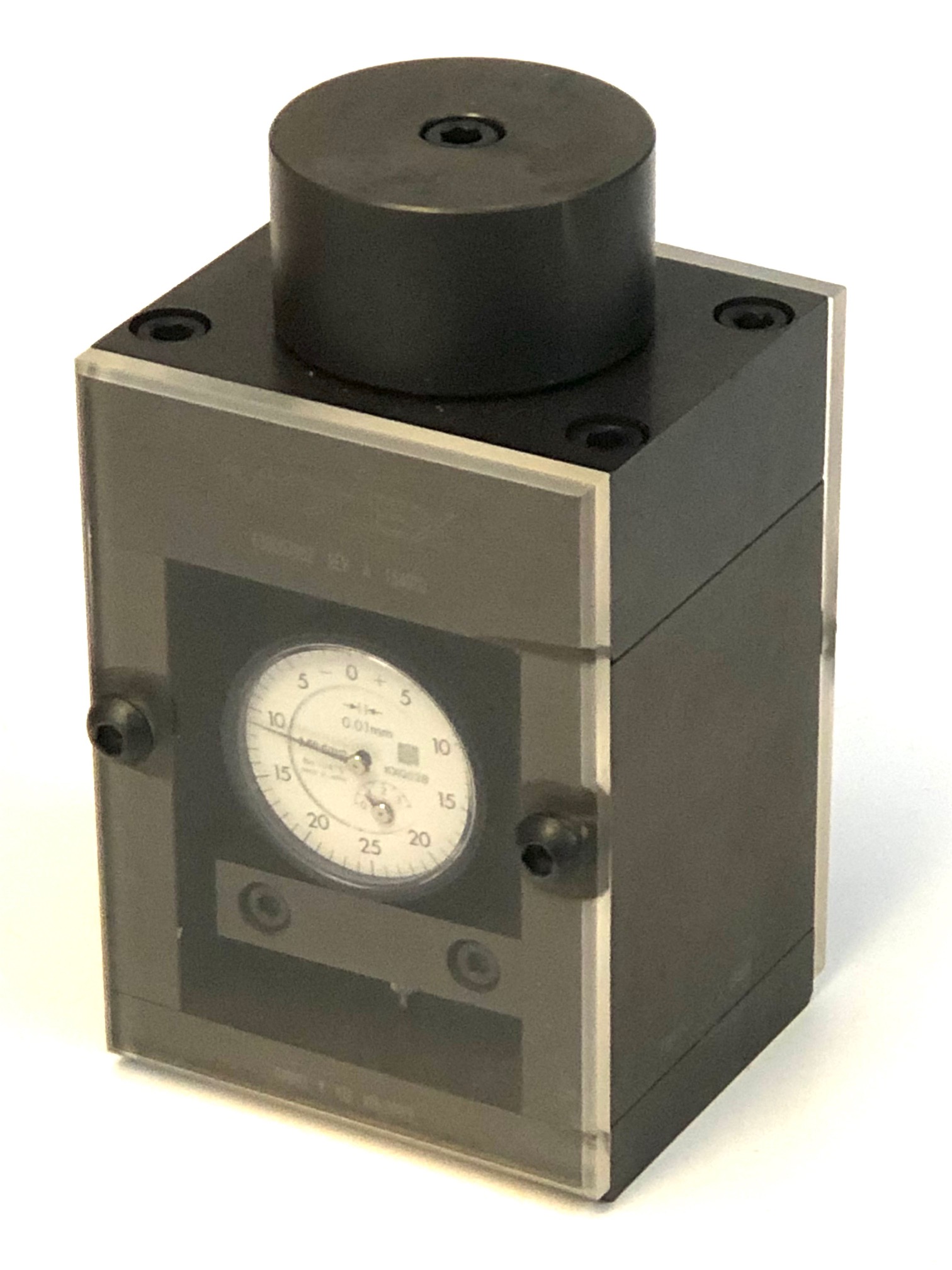

Press Shut height Gauge MOLEX 63800-7900

Press shut height gauge molex 63800-7900 model engine(s).

Catalog Number: PW4991
Engine(s):
Price:  $1425.65
Quantity:

DO NOT CYCLE YOUR PRESS UNDER POWER. Manual or jog only. THIS IS INTENDED FOR MANUAL OR SLOW APPLICATION OF FORCE ON THE PRESS. It resists the press with 1870 foot pounds of force.
63800-7900, SH-600, GTIN UPC EAN: 884982054479 Built in 2011 by MOlEX. Very lightly used excellent condition.
Ensures Standard press shut height to allow interchange-ability of applicators.
Applies 850 Kgf (1870 Foot lbs ) of force.
Measurement range: 135.8mm /- 0.2mm
This document was generated on 10/17/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number: 0638007900
Status: Active
Overview: Application Tooling
Description: Press Shut Height Gauge
Documents:
RoHS Certificate of Compliance (PDF)
General
Product Family Application Tooling
Series 207124
Comments See Tooling Specification (PDF) Above
Function Activation
Geographic Area Global
Level of Automation Semi-Automatic
More Detailed Tech Information applicationtooling@molex.com
Overview Application Tooling
Product Name N/A
Tool Type Crimp Quality Equipment
UPC 884982054479
Warranty Disclaimer CAUTION: Molex tooling crimp specifications are
valid only when used with Molex terminals and tooling
manufactured by Molex and sold by Molex or authorized
distributors ("Molex Tooling"). When using tooling
other than Molex Tooling with Molex specific connector
systems listed in our ATS documents, the Molex tooling
qualification does not apply and the responsibility for
full qualification of the connector system is that of the
customer. Molex accepts no liability for connector
performance or tooling support where tooling other
than Molex Tooling is used or where Molex Tooling is
modified.
Material Info
Engineering Number SH-600
Reference - Drawing Numbers
Application Tooling Documents ATS-638007900, ATS-638007900CH,
ATS-638007900DE, ATS-638007900FR,
ATS-638007900IT, ATS-638007900JP,
ATS-638007900KR, ATS-638007900MY,
ATS-638007900PL, ATS-638007900RU,
ATS-638007900SK, ATS-638007900SP,
ATS-638007900TH, ATS-638007900TW,
ATS-638007900VN
Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Not Relevant
REACH SVHC
Not Relevant
Halogen-Free
Status
Not Relevant
For more information, please visit Contact US
ELV Not Relevant
RoHS Phthalates Not Relevant
Search Parts in this Series
207124 Series
Use With
TM-2000 63800-8300 , 63800-8400.
TM-3000 63801-7200 , 63801-7300.
TM-4000 63801-7600 and most Industry
Standard Presses
This document was generated on 10/17/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Not returnable.
