Laser wire marking services - Commercial Aviation and Military customers. - Boeing BAC 5152

Laser wire marking services - commercial aviation and military customers. - boeing bac 5152 model engine(s).

Catalog Number: PW4823
Engine(s):
Price:  $150.00
Quantity:

Portland Wiring Harness is in full compliance with all pertinent Military, Boeing BAC 5152,
Airbus, FAA, Sikorsky, Northrop and other Commercial specifications.
M100LFG-TT laser markers have been built to meet all known safety and
industrial requirements of USA, Canada, European Union and are rated to
operate 24/7.


Our laser systems successfully support: US Army; US Air Force; US Navy;
Boeing, KS; Boeing, FL; Northrop Grumman ( multiple locations); Airbus, AL;
Gulfstream (5 sites), Bombardier (6 sites), AZ; NASA; Federal Aviation
Administration (FAA), OK; Israel Air Force; South African Airlines; Duncan
Aviation ( 2 units); Carson Helicopters, AZ; B/E Aerospace, USA; Heli-One,
Canada; Jet Source, USA; Garmin Industries, USA; Sabreliner, USA; Maxcraft,
Canada; and Electro-Metal, Germany; Kitchener, Canada; BE Aerospace,
Holland; Smiths Aerospace, Australia, US Army, Ohio National Guard, General
Atomics, USA; Air Cargo, USA, Silverado Cable, AZ; Nomad, FL; AmTech, AL;
Cascade Aerospace, Canada; DAVWIRE, Canada; Phillips, USA; TTAF ELECTRONIK ,
Turkey, etc.

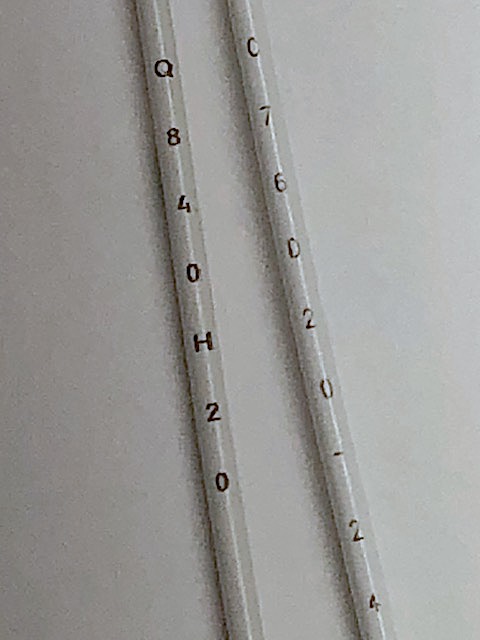

We can laser mark wire for you!

Portland Wiring Harness operates one of the few UV laser graphics marking systems in the Pacific Northwest. Our wire laser marking system is fully graphics capable, and able to print numbers, barcodes and QR codes. It fully complies with Boeing, Airbus, NTSB, United States military and aerospace marking requirements.

Newest cutting-edge technology:

Prints graphics and most world languages. Portland Wiring Harness's laser system supports both vertical and horizontal text orientation, programmable message spacing, 3 separate zones of print with variable separation spaces with source and destination coding on wire ends. Our software allows unlimited font selection (any TrueType font for most languages), as well as full graphics capabilities (pictures, logos, barcodes, QR codes, etc.).

Capabilities:

Our system utilizes a UV solid state laser with an integrated high-speed scanner.
Meets MIL-W-5088L, AS-5088-L, as well as SAE ARP5607 (Legibility of Print) specs.
We can print onto wires and twisted cables alike.
Qualified per the BAC5152 spec.
Single coil wire pre-feed.
Wire gauges: from 26 to 4 (.75mm to 10mm)
Wire and cable jacket materials: PTFE, TFE, PEF, ETEF, XL-ETFE, etc.
Laser markable wire types: BMS 13-48, BMS 13-60, Raychem spec 55, AS22759/16-19, 32-46, 80-92, etc.

Technical compliance:

Wire laser marking (writing on wire) is as important as the harness construction itself. Our wire marking system is fully compliant with aerospace requirements, and meets medical and pharmaceutical requirements. Our laser marking wire machine uses a UV solid state laser with an integrated high-speed scanner. Portland Wiring Harness can provide laser marking necessary for many medical and aerospace projects.

Your harness is a principal functional part of any machine. Many machines use colored wire as a statement of what the wires are doing. However, many machines and systems need much more specific labeling. Wire marking systems like ink jet, are not permanent marking systems but Portland Wiring Harness laser marking is a 100% permanent marking system.
